Dimensions: 3,906 x 3,008 m | Surface area: 11,75 m² | Aluminium sliding door (RAL 7016 - 3.65 x 2.065 m) with double glazing | Modern tongue and groove profiles in pinewood | Class III impregnation | Door handle (titanium finish) with three-point cylinder lock | Metallic trapezoidal roof panels (RAL 7016) | Zinc-magnesium gutters with drainage pipes | Water barrier band
|

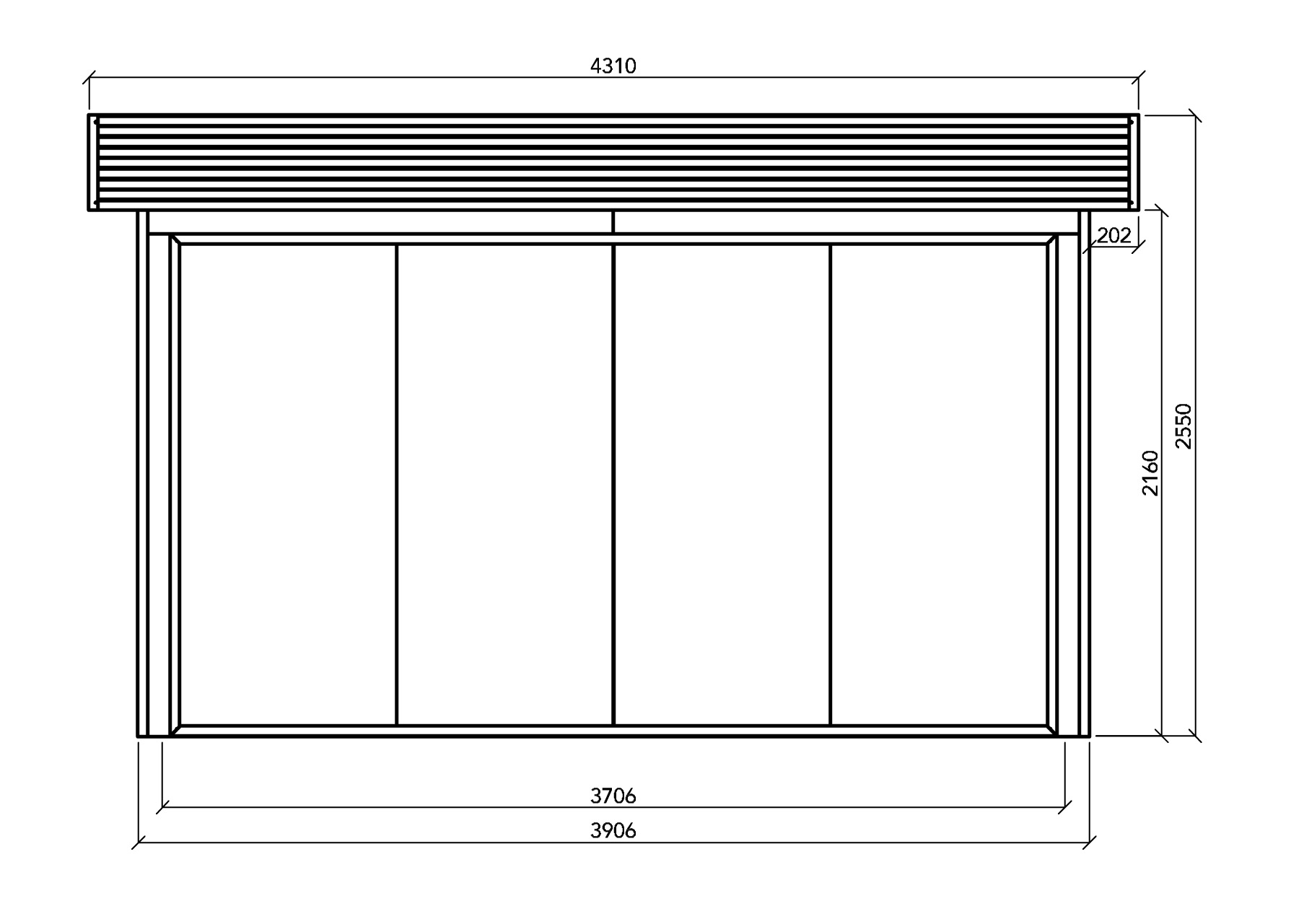

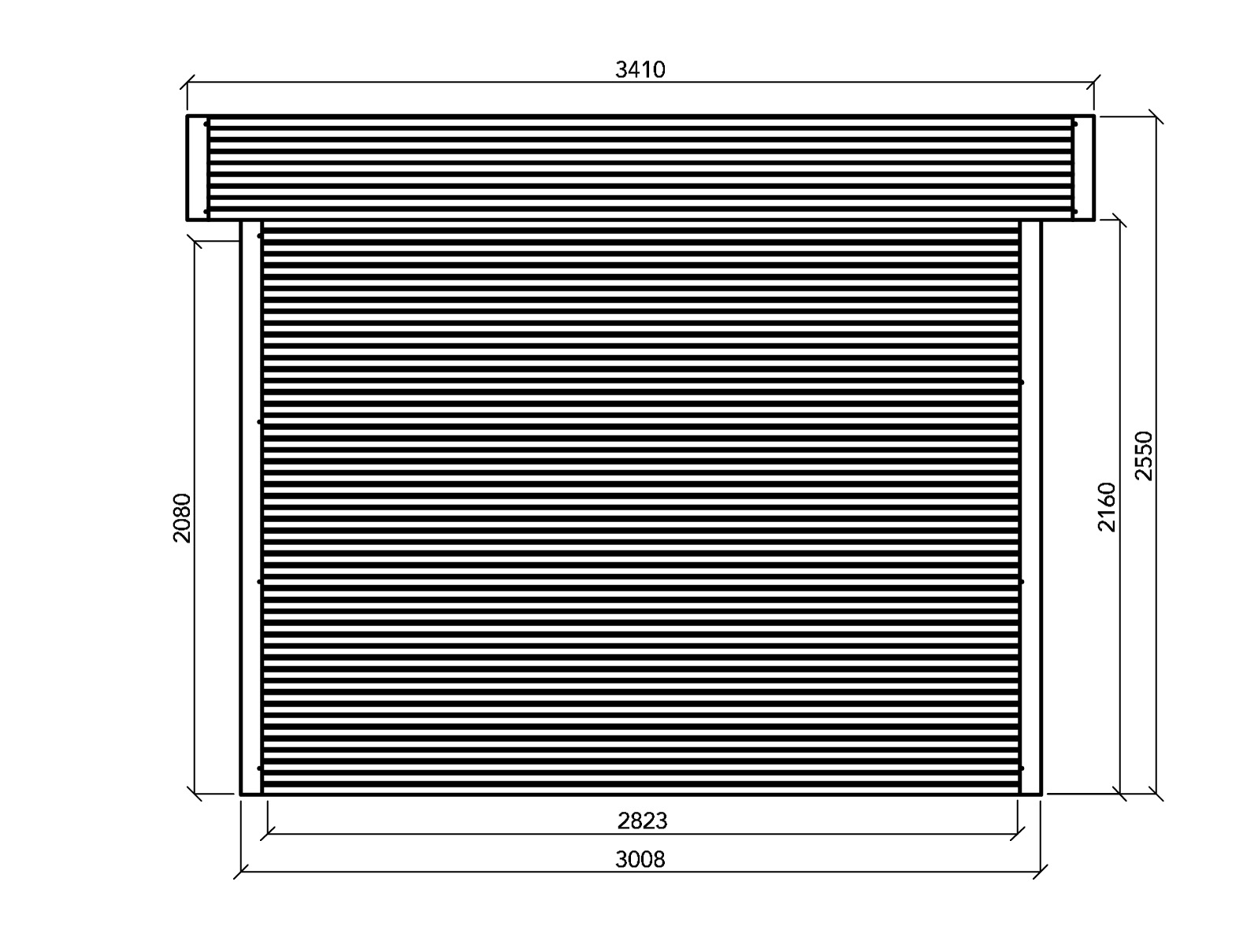

External dimensions and surface area: |
3,906 x 3,008 m |
|
External dimensions and surface area with roof overhang: |
4,31 x 3,41 m |
|
Interior dimensions and surface area: |
3,706 x 2,823 m |
|
Dimensions sliding door (L/H): |
3,65 x 2,065 m |
|
Ridge height: |
2,357 m |
|
Wall height: |
2,227 m |
|
Wall thickness: |
28 mm |
|
Thickness roof planks: |
19 mm + frame 70 mm |
|
Roof slope: |
3° |
|
Roof surface: |
14,24 m² |
|
Paintable surface: |
± 28 m² |
|
Snow load: |
75 kg/m² |
|
Permanent load: |
30 kg/m² |
3,906 x 3,008 | 11,75 m2
28 mm
