MORGANE

Modern

Dimensions: 3,906 x 3,008 m | Surface area: 11,75 m² | Aluminium sliding door (RAL 7016 - 3.65 x 2.065 m) with double glazing | Modern tongue and groove profiles in pinewood | Class III impregnation | Door handle (titanium finish) with three-point cylinder lock | Metallic trapezoidal roof panels (RAL 7016) | Zinc-magnesium gutters with drainage pipes | Water barrier band

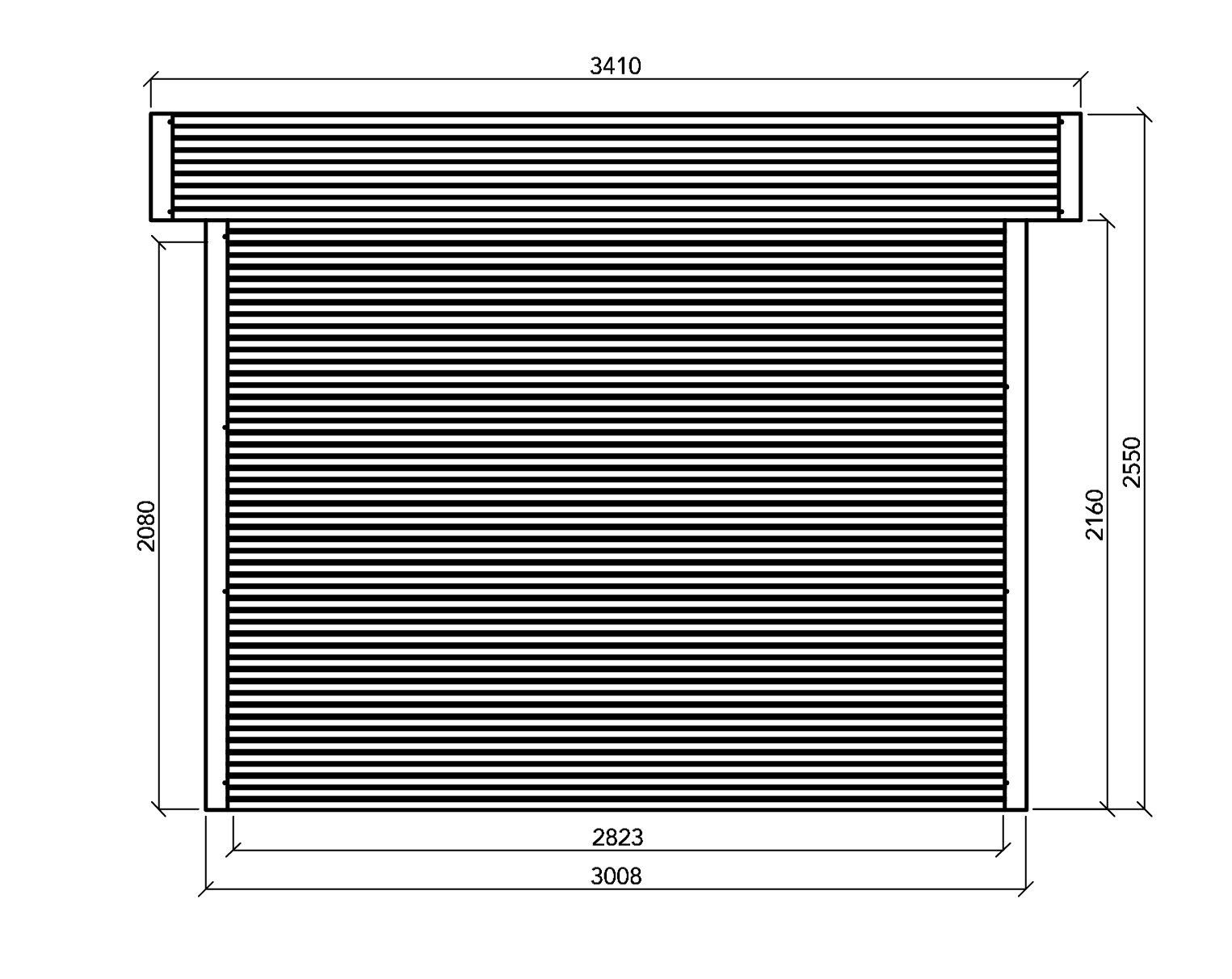

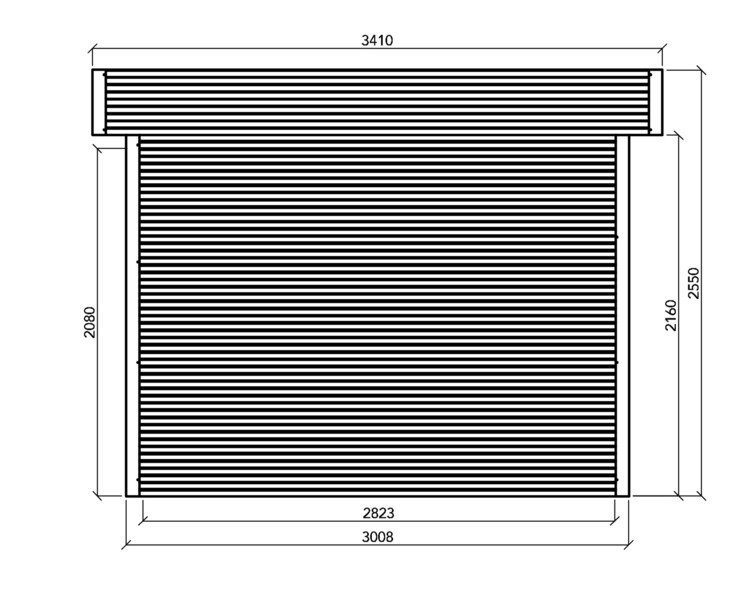

External dimensions and surface area:

3,906 x 3,008 m
11,75 m²

External dimensions and surface area with roof overhang:

4,31 x 3,41 m
14,70 m²

Interior dimensions and surface area:

3,706 x 2,823 m
10,46 m²

Dimensions sliding door (L/H):

3,65 x 2,065 m

Ridge height:

2,357 m

Wall height:

2,227 m

Wall thickness:

28 mm

Thickness roof planks:

19 mm + frame 70 mm

Roof slope:

Roof surface:

14,24 m²

Paintable surface:

± 28 m²

Snow load:

75 kg/m²

Permanent load:

30 kg/m²

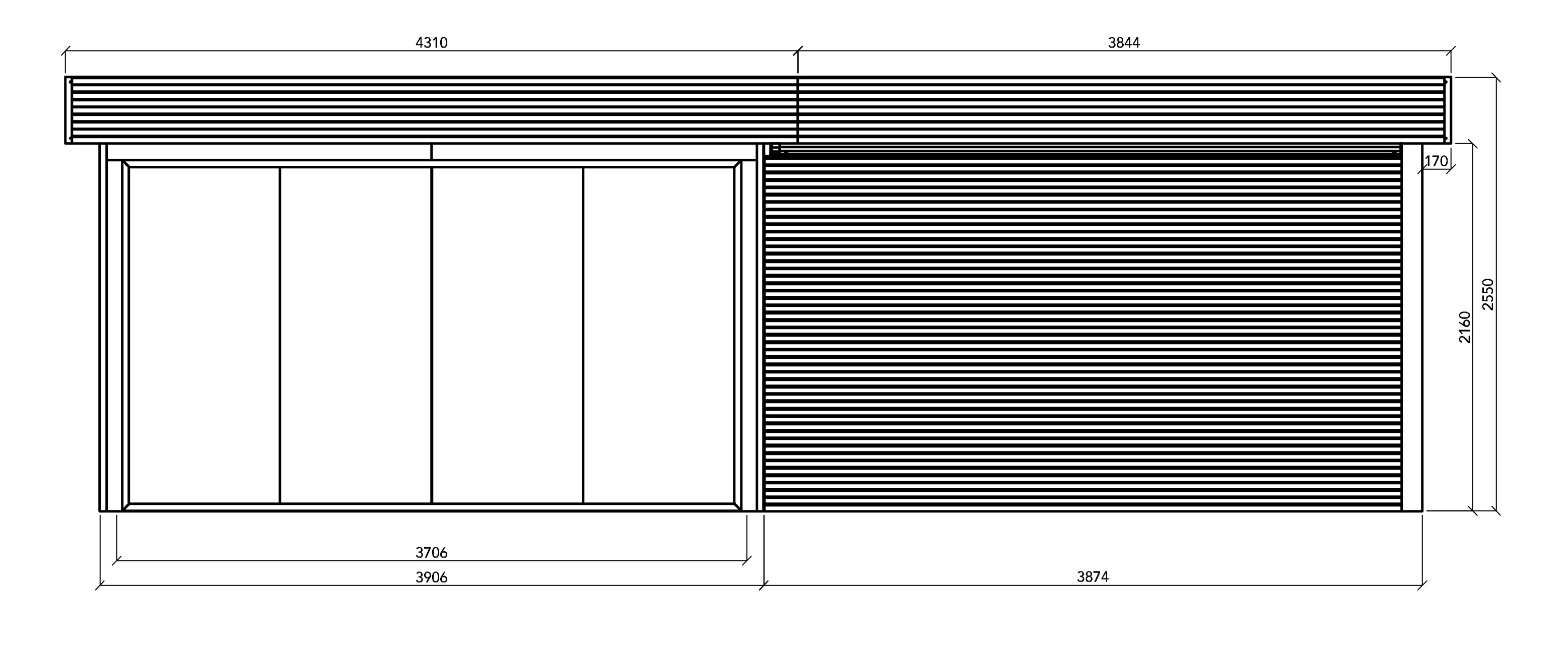

3,906 + 3,874 x 3,008  |  23,40 m2
28 mm

MORGANE
MORGANE
MORGANE

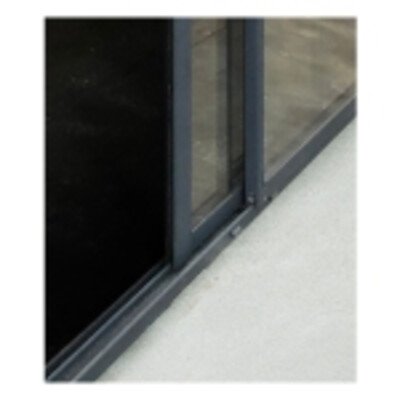

Aluminium sliding door
MORGANE
Double glazing
MORGANE
MORGANE
Class III impregnation
MORGANE
Three-point cylinder lock
MORGANE
Metallic trapezoidal roof panels
MORGANE
Zinc-magnesium gutter
MORGANE
Zinc-magnesium gutter in scene
MORGANE
isolation band
MORGANE
19 mm roof planks
