NOAM

Modern

Dimensions: 4,18 x 2,98 m | Surface area: 12,46 m² | Aluminium door (RAL 7016 - 1.66 x 2.065 m) and fixed windows (RAL 7016 - 0,73 x 2,065 m) with double glazing | Tongue and groove profiles in pinewood | Class III impregnation | Door handle (titanium finish) with three-point cylinder lock | Metallic trapezoidal roof panels (RAL 7016) | Zinc-magnesium gutters with drainage pipes | Water barrier band | Metallic fixing kit

External dimensions and surface area:

4,18 x 2,98 m
12,46 m²

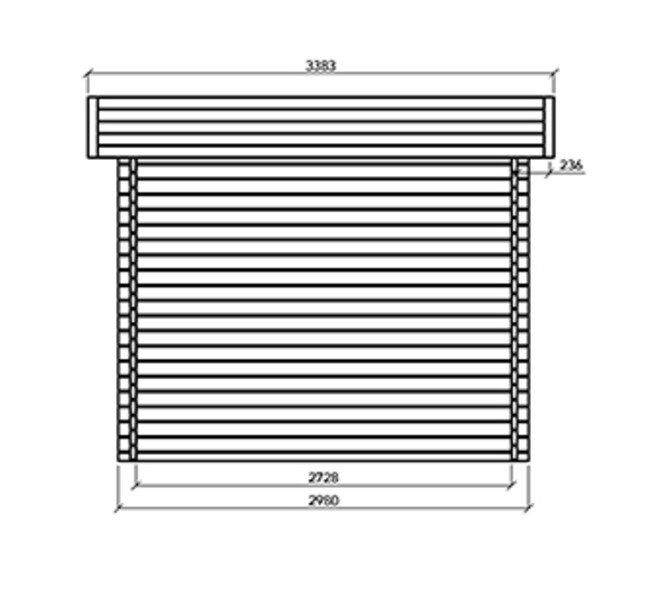

External dimensions and surface area with roof overhang:

4,54 x 3,38 m
15,35 m²

Interior dimensions and surface area:

3,93 x 2,73 m
10,73 m²

Dimensions double door (L/H):

1,66 x 2,065 m

Dimensions fixed window (L/H):

0,73 x 2,065 m

Ridge height:

2,55 m

Wall height:

2,31 m

Wall thickness:

40 mm

Thickness roof planks:

19 mm

Roof slope:

Roof surface:

15 m²

Paintable surface:

± 30 m²

Snow load:

75 kg/m²

Permanent load:

30 kg/m²

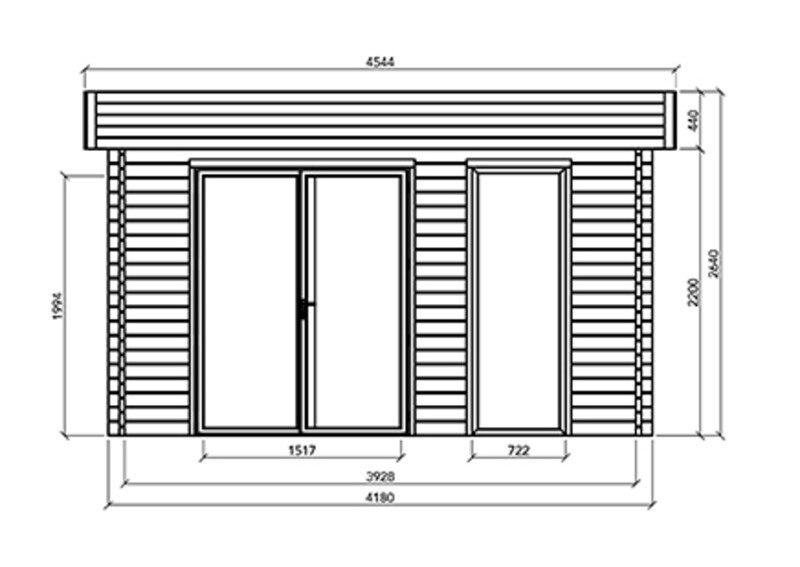

4,18 x 2,98  |  12,46 m2
40 mm

NOAM
NOAM
NOAM

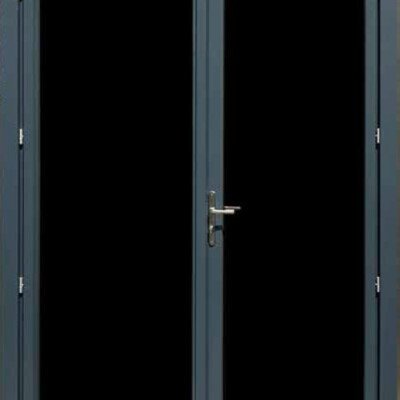

Aluminium door
NOAM

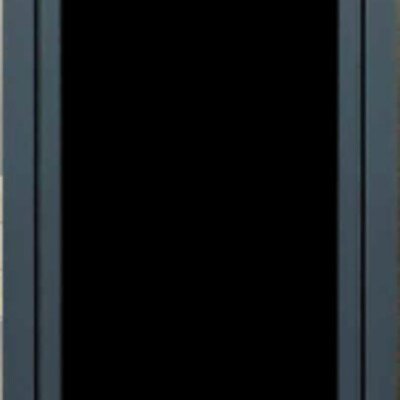

Fixed window
NOAM

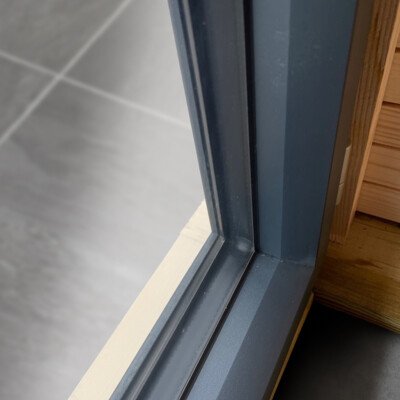

Double glazing
NOAM

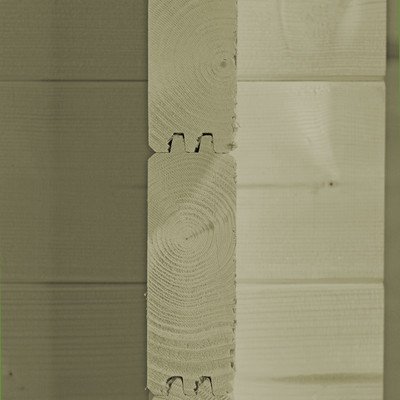

Tongue and groove profiles
NOAM

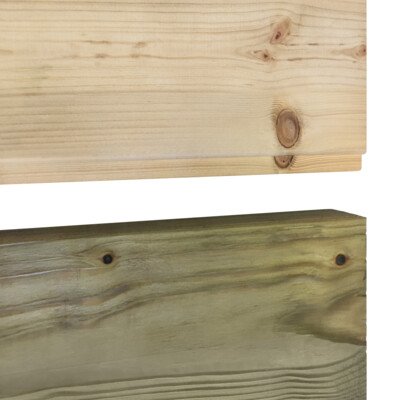

Class III impregnation
NOAM

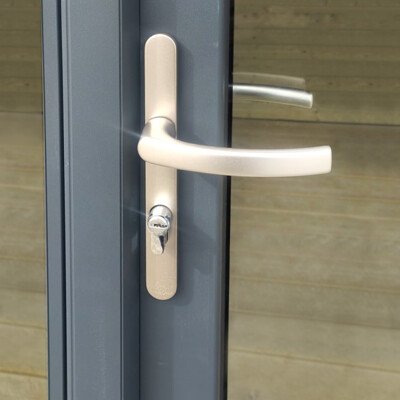

Three-point cylinder lock
NOAM

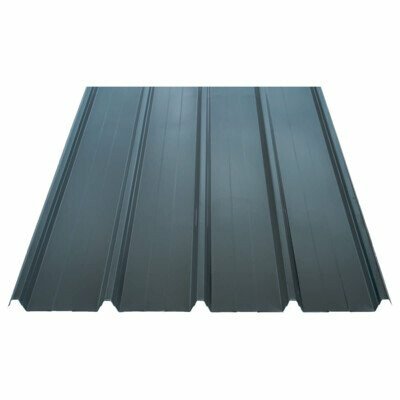

Metallic trapezoidal roof panels
NOAM

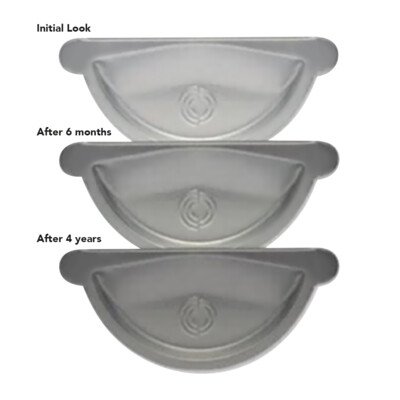

Zinc-magnesium gutter
NOAM

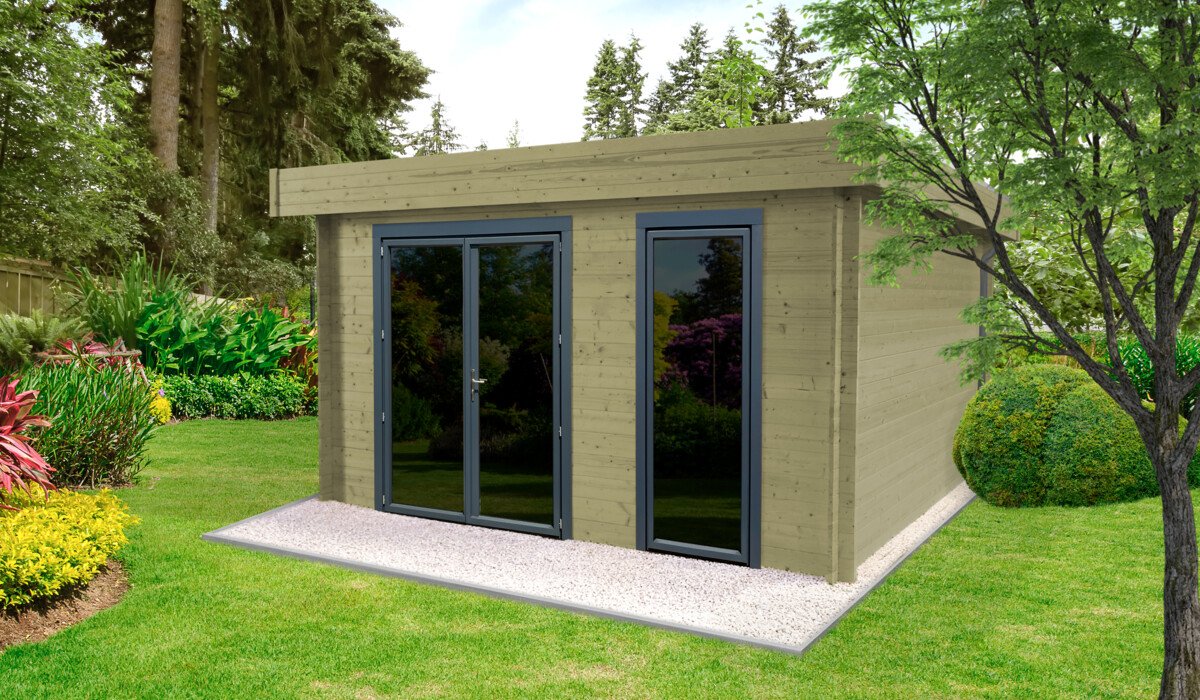

Zinc-magnesium gutter in scene
NOAM

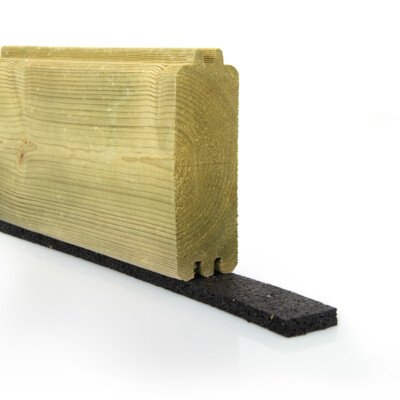

isolation band
NOAM

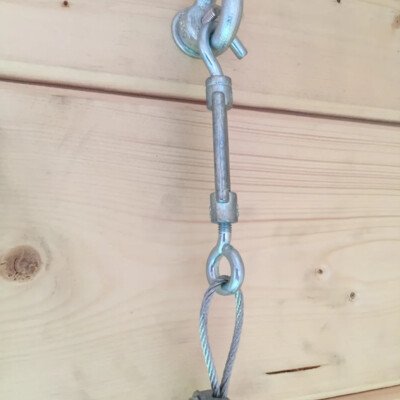

Metallic fixing kit
NOAM

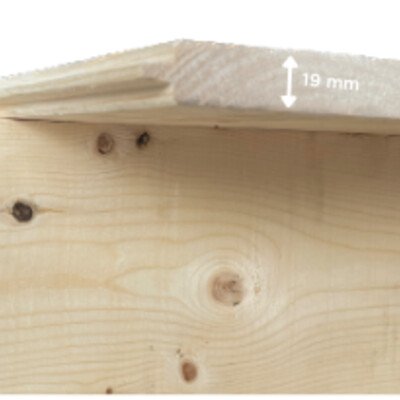

19 mm roof planks
